Water-cooled resistor

Water-cooled resistor

Features:

  • Small volume and high power;

  • The resistance value of resistor can be adjusted in a wide range: 0 ~ 100 Ω

  • Small change rate of resistance value in hot state: the resistance piece is made of nichrome material with low temperature coefficient, and the change rate of resistance value in hot state can not be higher than 10%

  • Good heat dissipation: the resistance matrix is aluminum shell for heat dissipation, which is used in air-cooled environment;

  • Strong corrosion resistance: the resistance piece is made of nichrome alloy and the shell is made of 6061 aluminum, which has strong corrosion resistance

  • Module Connection: the power demand can be adjusted by adding or reducing resistance modules

Product consultation hotline:18617185077
Product details

Product application:

The product can be used in new energy vehicles, new energy buses, shore power system, converter equipment, military industry, aviation field, test load field, etc. it can be used in matching with DC fan. The product can save more than half of the volume compared with traditional products.

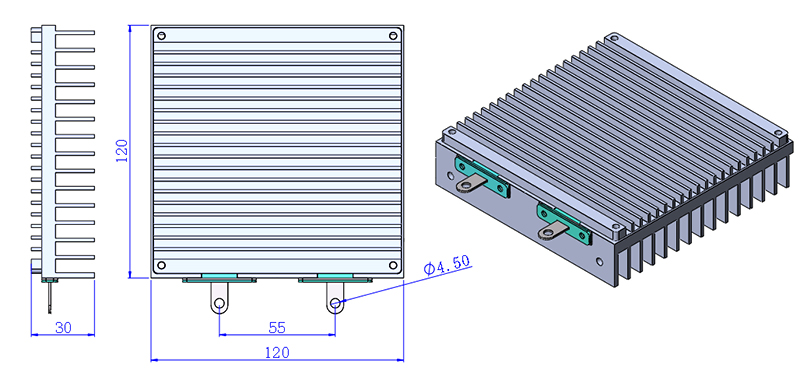

Demension:



Specification:

Short-term impact:10kW/1s

Fault Power:2kW

Rated resitance:0-100Ω

Cooling way:Air cooling heat dissipation

Stress levels:1.5kV/60s、3kV/60s

Dimension:120*120*30mm

Connection method:Conductor terminal

Appearance of the color:

Different Voltage, different internal structure, according to the requirement to choose

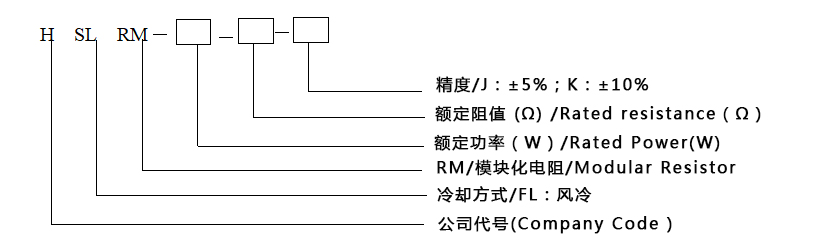

产品选型:

H.FL.RM-1.5kW-5R-J
Water Cooling Module Resistor is made by SiChuang. Module resistance power 1.5kW, resistance value 5Ω±5%
NOTE:Technical specifications may be subject to variations without notice.
